Supports MPEG-4, MJPEG and 3GPP Triple-Codec video compression formats.

Minimum Order Quantity : Negotiable
Are samples available for this product? : No

Language : English


The UNC7500-IRW IR camera supports advanced triple-codec MPEG-4, MJPEG, and 3GPP video compression formats. Motion JPEG delivers greater file integrity, making it ideal for critical monitoring situation. On the other hand, MPEG-4 format has smaller file size that makes it more useful for extended recording period or for use in low bandwidth networks. The advanced 3GPP format is special for mobile surveillance.

UNC7500-IRW integrated with 6 Infrared LEDs to improve the crystal clear image capture in the dark environment or at night. It provides auto switching mode for 24-hour day & night monitoring security. It also supports both wired and wireless LAN connectivity. It offers greater installation flexibility for SOHO user or business at different application areas such as home, office, retail store, school, or kindergarten. UNC7500-IRW supports 64/128bit WEP for establishing secure connections to your wireless network. Build-in CPU and Web server allows the camera to function as standalone device to send live video through the internet to web browser anywhere in the world.

Free bundle software is included for multiple cameras monitoring and recording to your hard drive with advanced function by time and date. Recording can be set up to record by motion trigger, manual or schedule recording and be able to playback on convenience Windows Media Player.

UNC7500-IRW camera provides superior true video quality, user-friendly Web management, motion detection, advanced e-mail notification / FTP upload functionalities and multi-tier access control for configuration.


  • Supports advanced triple-codec MPEG-4, MJPEG or 3GPP(mobile) selectable video compression format
  • Built-in Infrared LEDs to capture clear image in the dark environment for 24 hours day & night security
  • Additional USB port for connecting to external USB devices such as external USB storage or speakers
  • Supports Real Time Streaming Protocol technology
  • Built-in microphone for two-way audio function
  • IP Finder utility for auto scan IP address of cameras
  • Provides one 10/100Mbps auto-sensing LAN port
  • Real time monitoring by web browser over internet
  • Supports TCP/IP networking, UPnP and Dynamic IP
  • Free bundled 16-channel surveillance configuration, monitoring and recording software and be able to playback on Windows Media Player
  • Automatically send e-mail alerts with video clips upon events triggered by two motion detections
  • Supports Web configuration & password protection

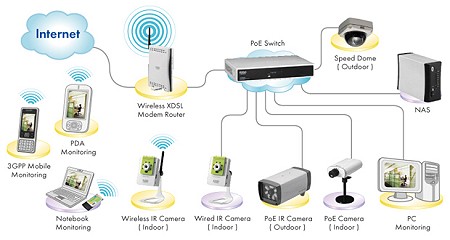

Application Diagram

Wireless / Wired / PoE Network Camera Application Diagram


UNC7500 IR camera series provides an excellent image by the MPEG4/MJPEG/3GPP triple-codec selectable technology to adjust image size, quality, and bit rate according to the different network environments. Advanced features of built-in Infrared LEDs enable the camera to capture crystal clear images in the dark environment or at night. As the result, UNC7500 IR camera series is a best solution to provide 24-hour day & night remote monitoring security via web browser from anywhere for your home or business.


Camera Specifications
Host Interface 1 * RJ-45 10/100M Auto-Sensing Ethernet Port
1 * USB 1.1 port with one unmount button, Power distribution:500mA Max.
1 * 802.11g 54Mbps Wireless LAN
Image Sensor 1/4” Color CMOS Sensor
Video Compression Triple-Codec ( MPEG-4 / MJPEG / 3GPP )
Multi-Profile 3 Profiles Simultaneously
Resolution 640 x 480
Lens Type Board Lens
Minimum Illumination 0.5 Lux
Digital Zoom 3x
Aperture (F/No.) 2.8
Focus Length 4.5mm
View Angel (Diagonal) 60 degree
Audio Capability Built-in 2-Way Internal Omni-directional Microphone
Auto Exposure Control Yes
Motion Detection Yes (two motion areas)
Snapshot FTP & E-mail Yes
Alert Message Yes
DDNS Function Yes
Indoor / Outdoor Use Indoor
Bundled Software 16-Channel Configuration/Recording/Monitoring Software
IP Finder Utility


Network Specifications
Ethernet Standards IEEE802.3 100Base-TX, IEEE802.3 10Base-T
IEEE802.11g, IEEE802.11b
Data Rate LAN: 10/100Mbps Auto Switch
Wireless: 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps auto fallback
Advanced Feature
  • Free 16-channel Surveillance and Configuration Software
  • IP Finder for Auto Scan IP address of cameras in LAN
    Image upload / send over E-mail, FTP
  • Events triggered by motion detection or according scheduling
  • Supports RTSP (Real Time Streaming Protocol) allows to view via network Simply management and configuration via Web Browser
  • Auto lighting IR LEDs when environment is low illumination
  • Additional USB port for external USB device like USB storage HDD or speakers
  • Supports 2 destination E-mail accounts & 2 scalable motion detection windows

Security Password protected and 3-level of authorization:
  • n Guest user just have view video and listen audio function only
  • n General user have all authority in live view page
  • n Administrator have view video and all configuration setting
  • Wireless: 64/128-bit WEP, WPA(TPIK), WPA2
Software Requirements
  • Microsoft Windows 2000/XP/Vista Operating Systems
  • Microsoft Internet Explorer 6.0 or above
  • Browser: Firefox (MJPEG mode only); Safari (MJPEG mode only)
  • Ultra View for playback /recording /configuration features


Hardware Specifications
System CPU: ARM9 base Processor
ROM: 8MB NOR Flash
Image Resolution / Frame Rate VGA (640 x 480) @30fps
QVGA (320 x 240) @30fps
QQVGA (160 x 120) @30fps
Installation Desktop / Wall / Ceiling Mountable
LED Indicator Power LED (amber), Link LED (green)
Reset Button Push and hold over 5 seconds to reset to factory default values
USB Unmount Button Push and hold over 4 seconds will dismount USB device
Housing Plastic Case
Input Power DC 5V, 2.5A External Power Adapter
Power Consumption 8 Watts Max.
Dimension 71 (L) x 49 (W) x 100 (H) mm
Weight 315 g ( Excluding Power Adapter )
Operating Temperature 5oC to 45oC
Operating Humidity 20% to 85% Non-Condensing
Emission Certification CE, FCC

Package Contents

  • One UNC7500-IRW Network Camera
  • One Setup Utility / Manual CD-ROM
  • One Quick Installation Guide (QIG)
  • One Network Cable and one DC Power adapter
  • One Set of desktop/wall/ceiling Stand Kits
  • One Wireless Detachable antenna

Ordering Information

Model Description
UNC7500-IR Wired MPEG-4/MJPEG/3GPP Triple-Codec Day & Night Security IR Camera with 16-CH Software
UNC7500-IRW Wireless MPEG-4/MJPEG/3GPP Triple-Codec Day & Night Security IR Camera with 16-CH Software
