UNC7700-IPE

Supports dual-codec MPEG-4 or MJPEG selectable compression format.Compliant with IEEE802.3af

Minimum Order Quantity : Negotiable
Are samples available for this product? : No

Language : English

The UNC7700 camera series support advanced dual-codec MPEG-4 and MJPEG video compression format and integrated with high sensitivity Sony CCD image sensor that produces a high video quality up to Full D1 resolution. Motion JPEG delivers greater file integrity, making it ideal for critical monitoring situation. On the other hand, MPEG-4 format has smaller file size that makes it more useful for extended recording period or for use in low bandwidth networks.

UNC7700-IW model supports both wired and wireless LAN connectivity. In addition, UNC770-IPE model build-in 802.3af compliant PoE standard. It offers greater installation flexibility for business at different application areas such as office, factory, retail store, school, airport, hospital, or banks. UNC7700-IW supports 64/128bit WEP for establishing secure connections to your wireless network. Build-in CPU and Web server allows the camera to function as standalone device to send live video through the internet to web browser anywhere in the world.

Free bundle software is included for multiple cameras monitoring and recording to your hard drive with advanced function by time and date. Recording can be set up to record by motion trigger, manual or schedule recording and be able to playback on convenience Windows Media Player.

UNC7700 CCD camera family provides superior true video quality, user-friendly Web management, motion detection, advanced e-mail notification / FTP upload functionalities and multi-tier access control for configuration.

Features

  • Supports dual-codec MPEG-4 or MJPEG selectable video compression format
  • Integrated with high sensitivity CCD image sensor
  • IEEE802.3af Power over Ethernet (PoE) standard
  • Provides one 10/100Mbps auto-sensing LAN port
  • Supports DC Iris Lens and built-in microphone
  • Real time monitoring by web browser over internet
  • Supports TCP/IP networking, UPnP and Dynamic IP
  • Free bundled 32-channel surveillance configuration, monitoring and recording software and be able to playback on Windows Media Player
  • IP Installer utility for auto scan IP address of camera
  • 30/25ftp @ Full D1 (720x480/720x576) resolution
  • Motion detection to trigger video/audio recording and e-mail alert
  • Multiple cameras monitoring, image capturing, and video recording up to 32 cameras at the same time
  • Supports Web configuration & password protection

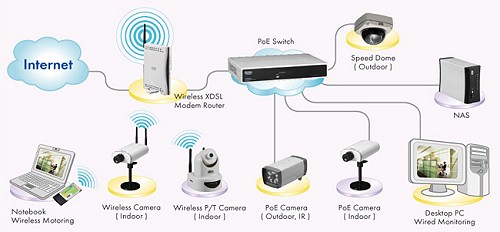

Application Diagram


UNC7700 high-quality CCD security series is a full-featured surveillance system that connect to an Ethernet or Wireless network toProvide remote monitoring via web browser from anywhere. With 802.11g wireless or PoE connectivity make installation flexibility atDifferent locations. IR filer allows to see the image in low or no light outdoor or indoor environment for your home or business.

Specifications

Camera Specifications

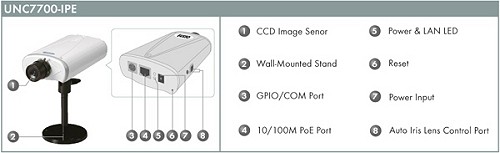

Host Interface

1 * RJ-45 PoE 10/100M Auto-Sensing Ethernet Port

1 * GPIO/Com Port

1 * Auto Iris Lens Control Port

Image Sensor

1/3” Sony CCD Sensor

Video Compression

Dual-Codec ( MPEG-4 / MJPEG )

Max. Video Resolution

720 x 480 / NTSC

720 x 576 / PAL

Frames per Second

Up to 30 / NTSC

Up to 25 / PAL

Lens Type

Fixed Lens, F1.6

Focal Length 6.0mm

Lens Changeable

Yes

Minimum Illumination

0.1 Lux @ F2.0

Analog Video Input / Output

1 Output

Alarm Input / Output

1 Input / 1 Output

Audio Capability

Built-in Microphone

Serial Connectors

RS232 / RS485

Motion Detection

Yes

Auto Iris Support

Yes

FTP & E-mail Alert Message

Yes

DDNS Function

Yes

Day & Night IR Illuminator

N/A

Indoor / Outdoor Use

Indoor

Bundled Software

32-Channel Recording/Monitoring Software; IP Installer Utility

Network Specifications

Ethernet Standards

IEEE802.3 100Base-TX, IEEE802.3 10Base-T

IEEE802.3af  Power over Ethernet ( PoE )

Data Rate

LAN: 10/100Mbps Auto Switch

Protocols

TCP/IP, HTTP, SMTP, DDNS, DNS, NTP, FTP, DHCP, UPnP, PPPoE, Static IP

Advanced Feature

Free 32-channel Surveillance and Configuration

Network Discovery and Assignment with IP Installer Utility

Remote Firmware Upgradeable via FTP

Sent Video Clip to an E-mail Address on Motion Detection

Recording to Hard Drive and Playback on Windows Media Player

Display Rotation and Full Screen Display

Supports NTP (Network Time Protocol) for Setting the Internet Clock

Event-Triggered, Scheduled, Manual Recording

Security

Multi-level User Access Control for Configuration

Administrator and User Group Protected and Password Authentication

Software Requirements

Microsoft Windows 98SE/ME/2000/XP Operating Systems

Microsoft Internet Explorer 5.0 or Above

Microsoft Direct X 9.0c or Higher

Macromedia Flash 6.0

Hardware Specifications

System

CPU: 32-bit RISC Processor

ROM: 4MB Flash ROM

RAM: 32MB SDRAM

Video Resolution

Full D1 ( 4SIF ): 720 x 480 (NTSC); 720 x 576 (PAL)

SIF: 352 x 241 (NTSC); 352 x 288 (PAL)

QSIF: 176 x 112 (NTSC); 176 x 144 (PAL)

Installation

Desktop / Wall / Ceiling Mountable

LED Indicator

Power, LAN

Housing

Metal Case

Input Power

DC 12V, 1A External Power Adapter

Power Consumption

< 8 Wattes

Dimension

162 (L) x 85 (W) x 40 (H) mm

Weight

570 g ( Excluding Power Adapter )

Operating Temperature

5oC to 50oC (40oF to 125oF)

Operating Humidity

20% to 80% Non-Condensing

Emission Certification

CE, FCC

Package Contents

  • One UNC7700-IPE Network CCD Camera
  • One Software / Manual CD-ROM
  • One Network Cable and one COM/GPIO Cable
  • One Set of desktop/wall/ceiling Stand Kit
  • One Power Adapter

Ordering Information

Model

Description

UNC7700-I

Wired  MPEG-4/MJPEG Dual-Codec Network Security CCD Camera with 32-CH Software

UNC7700-IW

Wireless  MPEG-4/MJPEG Dual-Codec Network Security CCD Camera with 32-CH Software

UNC7700-IPE

PoE  MPEG-4/MJPEG Dual-Codec Network Security CCD Camera with 32-CH Software
