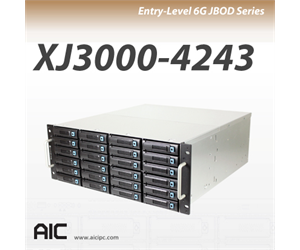

4U 24 Bay(SAS/SATA) Entry-Level 6G JBOD Series

Minimum Order Quantity : Negotiable
Are samples available for this product? : Yes
Current Export Markets : Worldwide

Language : English


General :Number of Expander boardSingle
Expander ChipLSISAS2x36
Host InterfaceSingle Mini SAS 4x connector
Expansion InterfaceSingle Mini SAS 4x connector
Transfer Bandwidth2,400MB/s per connector
Supported :
Drive Interface3.0/6.0 Gb dual ported SAS,
1.5/3.0/6.0 Gb single ported SATA
Drive RPMUp to 15,000
Form Factor3.5”, 1” height
Administration /
Management :
Admin/Firmware UpgradeIn-band & Out-of-band
Serial port via Hyperterminal
LED Indicators,
Audible Alarm
Hot-swap and
Redundancy :
Disk DriveHot-swap 24-bay
Cooling3 x hot-swap fans
Power Supply600W 1+1 hot-swap redundant
80+ (Sliver)
Power EntryDual AC Inlet
Electrical and
Environmental :
Universal A/C Input100~240V AC full range
Operating EnvironmentTemperature 0ºC to 35ºC
Relative humidity 20% to 80%
Non-operating EnvironmentTemperature -20ºC to 60ºC
Relative humidity 10% to 90%
Specification :
Dimensions (W x D x H)
(with chassis ears)
mm : 482.6 x 482.1 x 177
inches : 19 x 19 x 7
Gross Weight
(w/ PSU and Rail)
28 kgs / 61.6 lbs
Packaging Dimension
(W x D x H)
mm : 600 x 730 x 376
Cubic Feet5.8
Reference Container
20': 165
40': 335
40'H: 405
Mounting OptionAdjust plate or 20” tool-less rail
