Key-point:

• Onboard Intel® Celeron® M 600MHz with 512K L2 cache processor
• Intel® 855GME chipsets, 400 MHz FSB
• Chipset integrated VGA function
• Memory support DDR 266 / 333 MHz
• Support 10 / 100 Base-TX Ethernet
• Audio Line-out, MIC Phone jack
• 1 x COM ports, 2 x USB 2.0 ports, 2 x IEEE1394 ports
• CF socket, 1 x PCI slot
• WatchDog Timer & Hardware monitoring function

Specification:

Processor:

• Onboard Intel® Celeron® M 600MHz with 512K L2 Cache processor

Core Logic:

• Intel® 855GME + ICH4 chipsets

BIOS:

• Award 4Mbit Flash BIOS

Front Side Bus Speed:

• 400 MHz

Memory:

• One 200-pins SODIMM, support 1GB DDR 266 / 333 SDRAM (max.)

Display:

• Intel 855GME integrated function, shared system memory up to 64MB

Ethernet:

• Intel® 82562ET LAN controller, for 10 / 100 Base-TX Ethernet

System Indicators:

• Two LED indicators show the power and HDD status

Storage:

• One drive bay space for 2.5” HDD
• One CompactFlash™ type II socket

Expansion slot:

• One PCI slot

WatchDog Timer:

• 256 Levels software programmable

Hardware Monitoring:

• Monitoring for CPU and system, temperature, voltage and fan speed

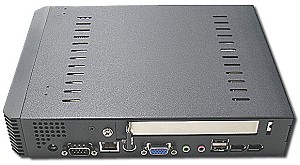

Rear Panel External I/O:

• Power jack : 1 x DC-In power jack
• Serial port : COM1 for RS-232
• LAN Port : 1 x RJ-45 phone jack
• Mouse & K/B : 1 x 6-pins mini DIN for PS/2 type
• VGA port : 1 x 15-pin D-Sub CRT connectors
• Audio Port : Line-out, MIC-in Phone Jack
• USB Port : 2 x USB 2.0
• IEEE-1394 Port : 2 x IEEE-1394

Front Panel External I/O:

• 1x Power ON/OFF button
• 1x Reset button

Power Supply:

• 60W DC19V Input Power Adapter

Environments:

• Operation temperature: 0°C to 40°C (32° F to 104° F)
• Storage temperature: 0°C to 55°C (32° F to 167° F)
• Relative humidity: 10% to 90% (Non-Condensing)

Dimensions W*H*D:

• 236 * 47 * 180 mm

Weight:

• 1.2kgs (BareBone)
