EP-3164D-GAS3 can provide users for dual active protection, high bandwidth cache mirroring, seamless management, multiple target nodes, high availability / load-balancing, and high performance. With this new weapon, you can move into industry at the need of high-speed, such as cloud computing, high-speed computing, grid computing, and even get into virtualization environment.

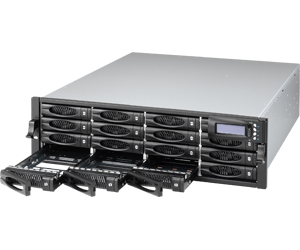

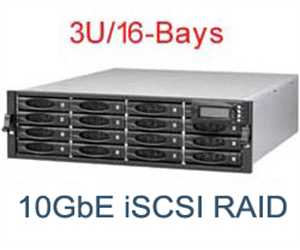

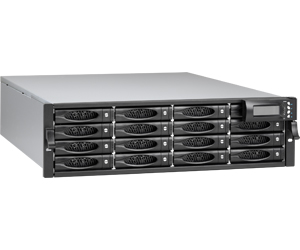

Proware EP-3164D-GAS3 iSCSI RAID system provides high capacity storage, 24x7 data protection, shared access, central management and simplified capacity expansion to reach the most difficult needs of transfer speed and the amount of data grows. Ethernet based storage area networks are easily configured with software and/or high performance hardware initiators using existing network management skill sets. The EP-3164D-GAS3 iSCSI RAID subsystem features four 10Gb/s Ethernet host ports to increase system efficiency and performance. It features high capacity expansion, with 16 hot-swappable SAS/SATA II hard disk drive bays in a 19-inch 3U rackmount unit, scaling to a maximum storage capacity in the terabyte range. The EP-3164D-GAS3 also supports Dual-active controllers which provide better fault tolerance and higher reliability of system operation. It is ideal for building a shared storage pool for disk-to-disk volume distribution, data backup, storage consolidation, and replication among networked servers.

Unparalleled Performance & Reliability

• Supports Dual-active controllers
• Front-end 4 x 10Gb iSCSI ports
• Supports 802.3ad port trunking, Link Aggregation Control Protocol (LACP)
• High data bandwidth of system architecture by powerful 64-bit RAID processor

Unsurpassed Data Availability

• RAID 6 capability provides the highest level of data protection
• Supports snapshot-on-the-box w/o relying on host software
• Supports Microsoft Windows Volume Shadow Copy Services (VSS)

Exceptional Manageability Menu-driven front panel display

• Management GUI via serial console, SSH telnet, Web and secure web(HTTPS)
• Event notification via Email and SNMP trap
• Menu-driven front panel display

Features

• Front-end 4 x 10Gb NIC ports per system with high availability/load balancing/ fail-over support(802.3ad port trunking, LACP)
• Supports iSCSI jumbo frame
• Supports Microsoft Multipath I/O (MPIO)
• Supports RAID levels 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60 and JBOD
• Local N-way mirror: Extension to RAID 1 level, N copies of the disk
• Global and dedicated hot spare disks
• Write-through or write-back cache policy for different application usage
• Supports greater than 2TB per volume set (64-bit LBA support)
• Supports manual or scheduling volume snapshot (up to 32 snapshot)
• Snapshot rollback mechanism
• On-line volume migration with no system down-time
• Online volume expansion
• Instant RAID volume availability and background initialization
• Supports S.M.A.R.T, NCQ and OOB Staggered Spin-up capable drives
